Cooling & Heating Water

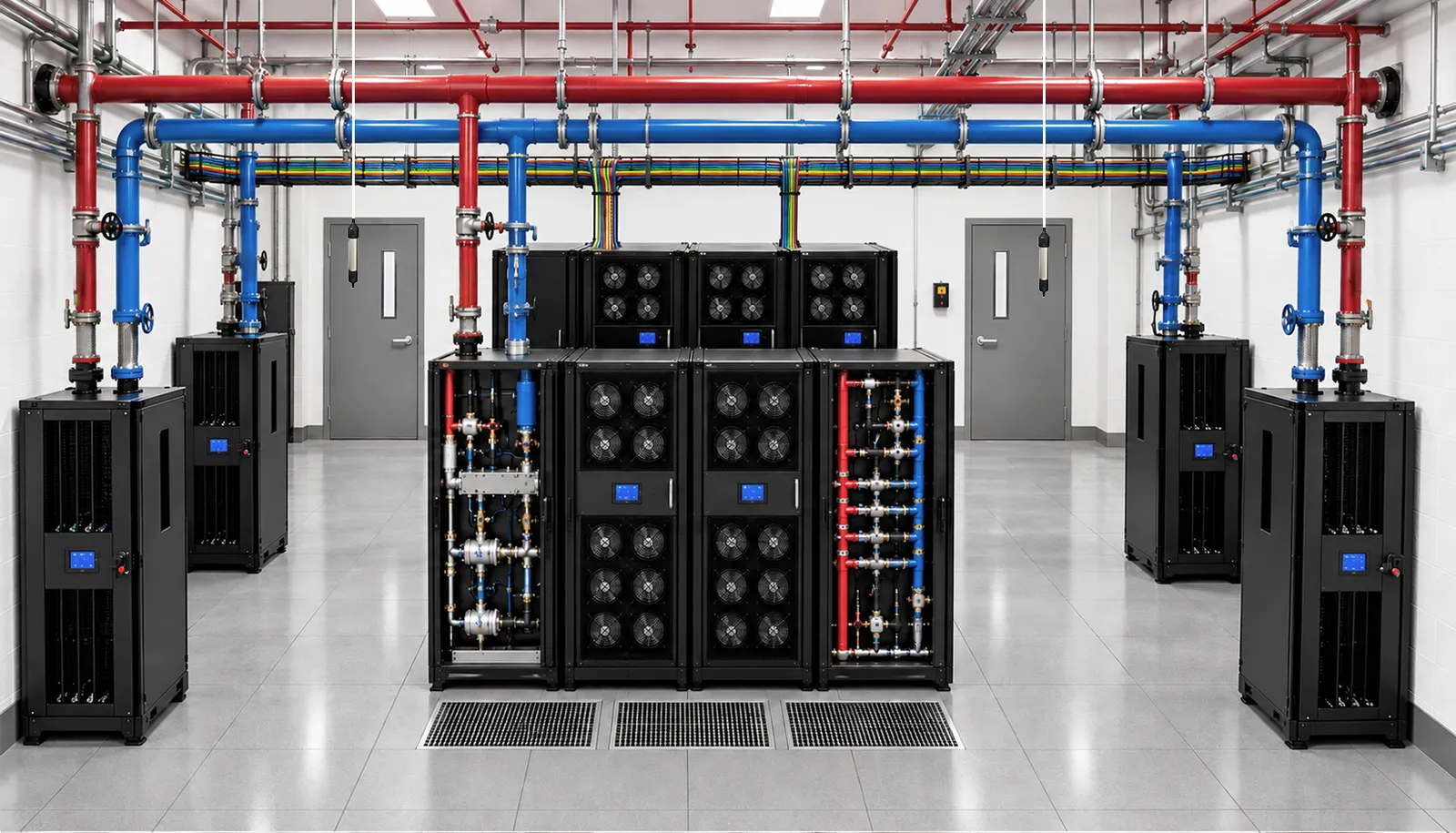

Rack Level Cooling (RDHx)
Rear-door heat exchangers reject rack heat to the facility water loop. Monitoring covers cooling-loop flow, coolant supply and return temperature, loop pressure, and leak detection with containment.
Measures: Rack/chip cooling-loop flow · Pressure monitoring
Used in:Data Centres
1
Rack & Chip Cooling-Loop Flow
Verifies coolant circulation through each rear-door heat exchanger branch so racks never run on a stalled or under-delivering loop.
Omega Series FTB Turbine Flow MeterHard-alloy thrust bearing for accuracy and wear resistance; rugged, easy install; low minimum flow; low pressure loss; high repeatability
Dwyer IEFB Insertion Thermal Energy Meter; Adj. 4"-36" PipesCurrent-Voltage-Pulse Outputs, Alarms; Optional BACnet & Modbus; 10', 20', 50' Sensor Leads
Dwyer Series TDFS2 Thermal Dispersion Flow Switch (Non-Mechanical, Low Pressure Drop, Large Pipes)Measure Flow Above or Below User Set Flow Rate; Normally-Open & Normally-Closed NPN Outputs; LED Indication
FLT93 Thermal Dispersion SwitchFCI’s FLT93 Series are the most popularly installed heavy duty thermal dispersion flow and level switches in the world. The reasons are simple; FLT93s were developed from more than 40 years of flow and level switch engineering and…
2

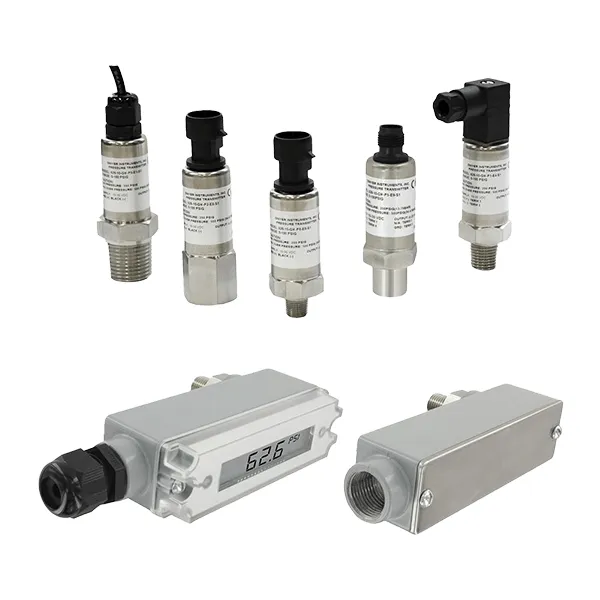

Loop Pressure & Pump Status
Watches differential and line pressure across the coolant distribution units and confirms pump motor current for early fouling or pump-loss detection.
Application data from the DwyerOmega Application Navigator ↗. Ronsor can help adapt it to your site.
