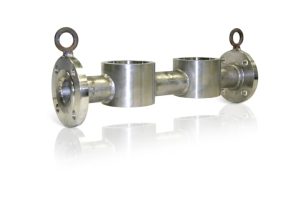

FPD470 Wedge Flow Element

ABB K-Tek

FPD470 Wedge Flow Element

FPD470 wedge elements consists of a body and wedge flow restriction. This restriction creates a differential pressure in proportion to the square of the volumetric flow rate.

Flow Meters Energy and Chemicals Power Generation

Request a quote

Supplied and supported in Singapore by Ronsor Engineering · +65 6779 2818 · Not sure it's the right one? Try the Product Finder

FPD470 wedge elements consists of a body and wedge flow restriction. This restriction creates a differential pressure in proportion to the square of the volumetric flow rate.

Optionally available with differential pressure transmitters for a complete flow meter set-up.

Additional materials

FPD470 Wedge Flow Element Datasheet Download

Used in these applications

Distillation Columns & Process VesselsFeed, Reflux & Product Flow
