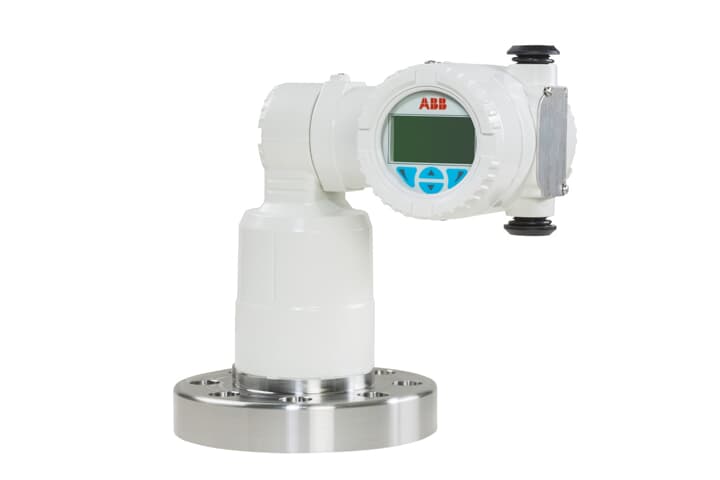

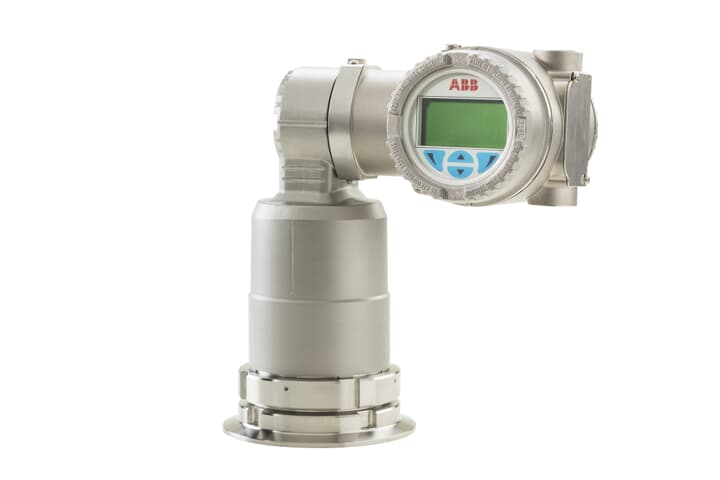

LLT100 Laser Level Transmitter
Non-contact laser level measurement solutions Industries served Customer benefits Level
Supplied and supported in Singapore by Ronsor Engineering · +65 6779 2818 · Not sure it's the right one? Try the Product Finder
Non-contact laser level measurement solutions
Industries served
- Mining and construction
- Aggregates
- Fertilizers
- Chemicals
- Pulp and paper processing
- Oil & gas
- Power generation
- Food and beverage
- Water and wastewater
Customer benefits
- Non-contact
- Maintenance free
- Narrow beam not affected by surrounding structures
- No echo mapping required
- Very flexible installation, can be aimed at an angle
- Range up to 200 m
- Very accurate
- Rapid response

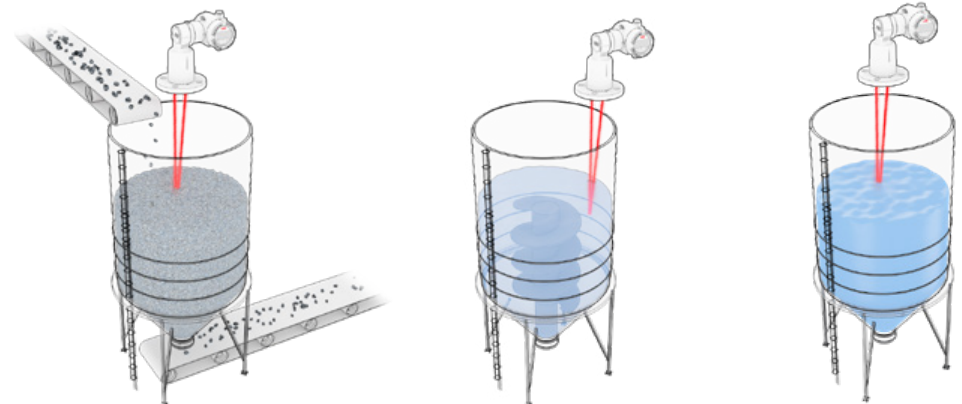

Level measurement with laser technology
Using a time-of-flight calculation, the LLT100,
LM80, and LM200 can accurately measure the
distance to the targeted surface.
These level transmitters use invisible, eye-safe,
infrared laser pulses to measure the distance
to the surface. The on-board microprocessor
calculates the distance by multiplying the known speed of light by the travel time of the laser pulse from the transmitter to the surface and back.
The laser beams have very little divergence (<0.3°) so accurate targeting is easy even in silos or vessels that have internal structures. Also, the narrow beam does not interact with local structures or build-up on vessel walls, making measurements very reliable even when the environment changes. This means no reconfiguration, no down-time and reduced lifetime costs.
Made for industrial applications
- Measures through dust and fog
- Approved for hazardous areas
- Certified for high pressures
